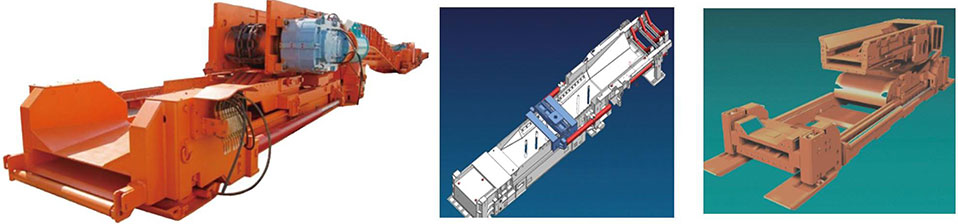

The belt conveyor tail self movement device is suitable for the high production and high efficiency working face channeltransfer machine and the belt conveyor tail fast moving and correct lap.The moving tailis hydraulicaly powered by the workingface emulsion pump station, which can meet the requirements of high footage and fast advance of working face.At the same timewith the belt deviation adjustment, transfer machine direction straightening and self-moving forward and other functions, to ensurethe channel transport, transfer smooth and good equipment connection.The moving tail has the following characteristics:
 using pin connection between frame structure, the structure is simple, connection strength is big, not loose, not in the op-eration of the arch the back.
 using floating bearing oil cvlinder, cvlinder only inherit the push, pull. the bendina moment bv the auide bush. under oil cvl.
inder piston rod deformation.
 the move from the tail is suitable for a knife, or three pole shift mode of operation.
the device for belt conveyor has the function of tensioning tape itself.

■技术参数 Technical parameters ■执行标准lmplementation standard:MT/T105-2006
